Description
Reliable Power and Data for Your Network – TP-Link PoE Switch

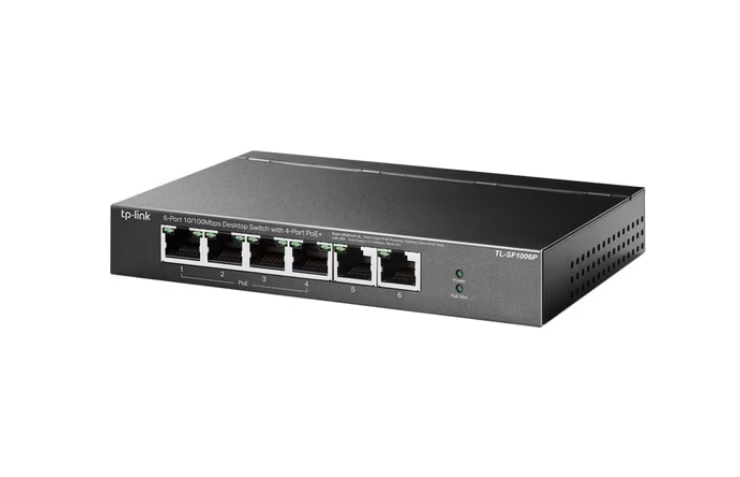

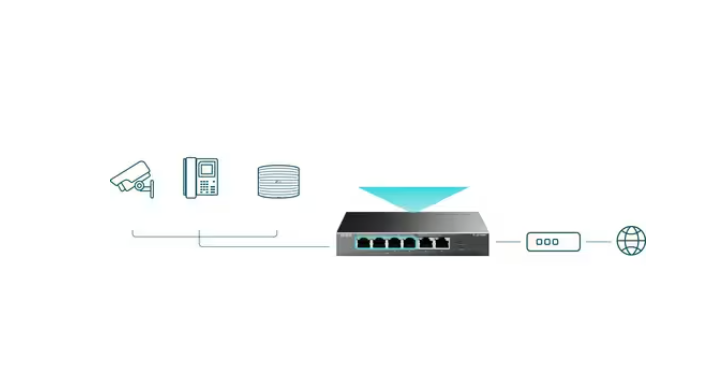

The TP-Link TL-SF1006P is a compact yet powerful 6-port unmanaged switch designed to simplify the deployment of PoE-powered devices like IP cameras, VoIP phones, and access points. Featuring 4 PoE+ ports with a total power budget of 67W, this plug-and-play device delivers both data and power over a single Ethernet cable—ideal for small office, surveillance, or home networking setups.
Operating at 10/100Mbps speeds, this TP-Link PoE switch ensures smooth, stable connectivity for all connected devices. The additional two non-PoE ports offer standard Ethernet access, making it easy to build or expand your wired network infrastructure. The TL-SF1006P is built with a sturdy metal housing and shielded ports to ensure durability and long-lasting performance in a range of environments.

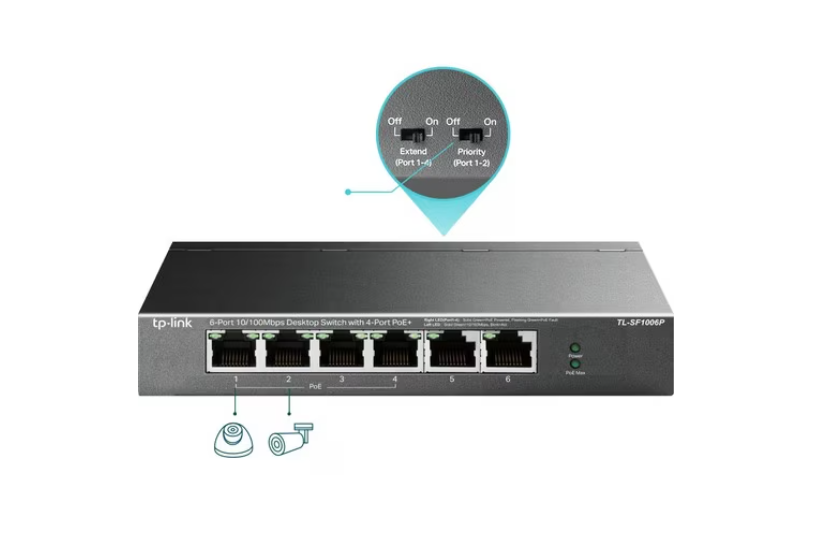

What sets this switch apart are its specialized modes. In Extend Mode, the switch supports up to 250m transmission distance for PoE-powered devices—ideal for large-scale installations. Priority Mode gives bandwidth priority to selected ports, ensuring stable performance for critical devices like IP cameras or NVRs.

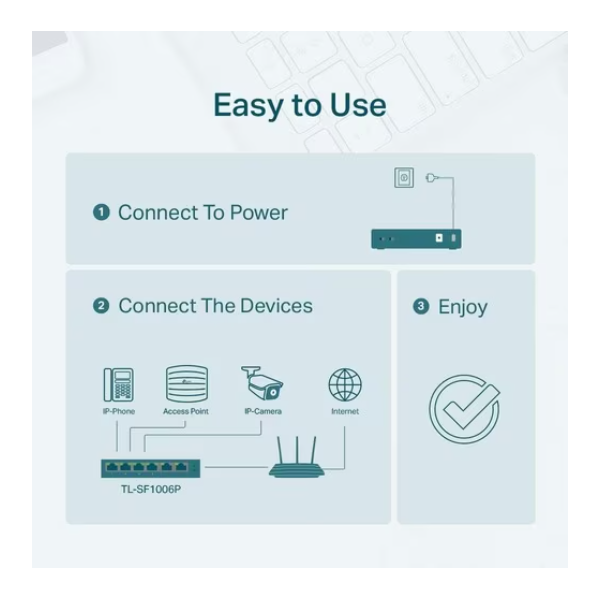

With no software configuration required, the TL-SF1006P offers true plug-and-play simplicity, making it a perfect fit for non-technical users as well as IT pros. The switch includes built-in overload protection and intelligently detects and delivers the correct power level to protect your equipment.
If you’re looking for a high-value, reliable networking solution, the TP-Link PoE switch TL-SF1006P is a smart investment. For more information, visit the official
TP-Link product page.
TP-Link TL-SF1006P – Product Specifications | |
---|---|
Model Number | TL-SF1006P |
Port Configuration | 6 × 10/100 Mbps RJ45 Ports (4 PoE+ Ports + 2 Uplink Ports) |
PoE Standard | IEEE 802.3af/at compliant |
PoE Power Budget | 67W total; up to 30W per PoE+ port |
Switching Capacity | 1.2 Gbps |
MAC Address Table | 2K entries |
Fanless Design | Yes – Silent operation |
Special Modes | Extend Mode (up to 250m), Priority Mode, Isolation Mode |
Power Supply | External Power Adapter (53.5VDC/1.31A) |
Housing | Sturdy metal case |
Mounting Options | Desktop or wall-mountable |

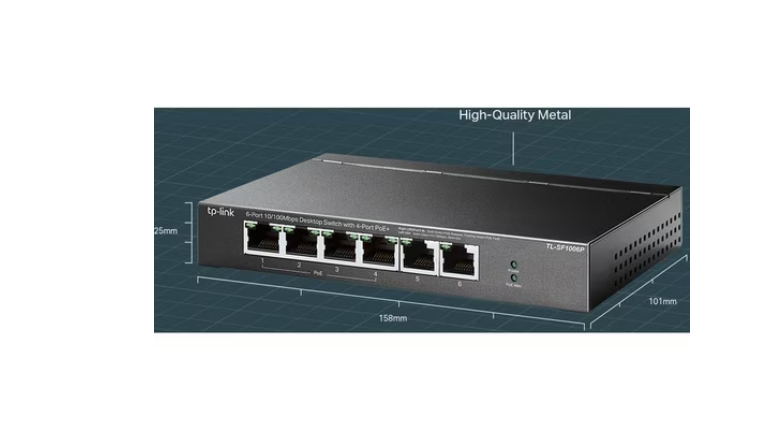

Dimensions | 6.3 × 3.9 × 1.0 in (160 × 100 × 25 mm) |
Operating Temperature | 0°C~40°C (32°F~104°F) |
Warranty | Limited Lifetime Warranty (varies by region) |
