Description
Product Overview

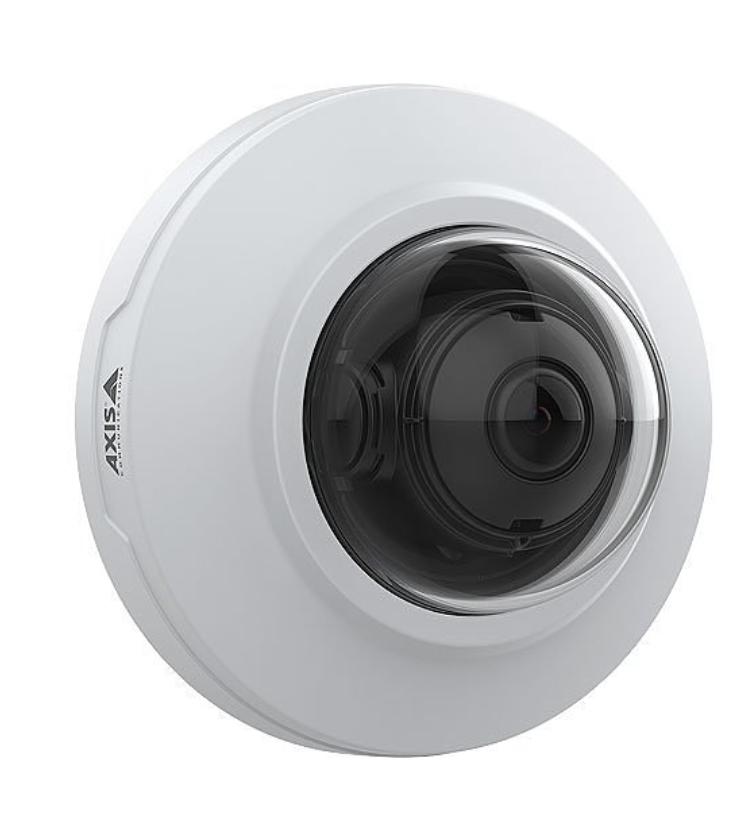

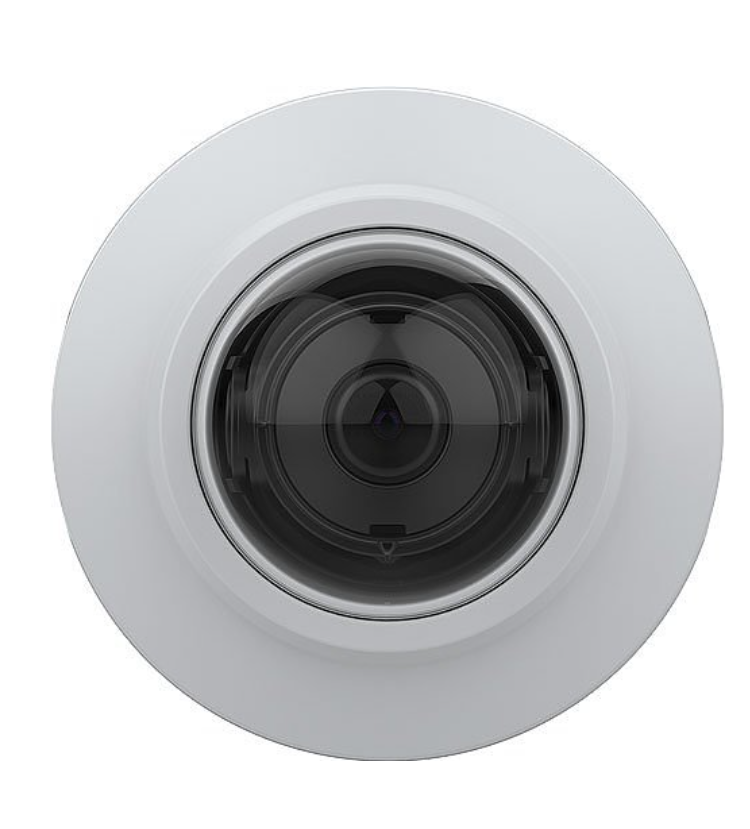

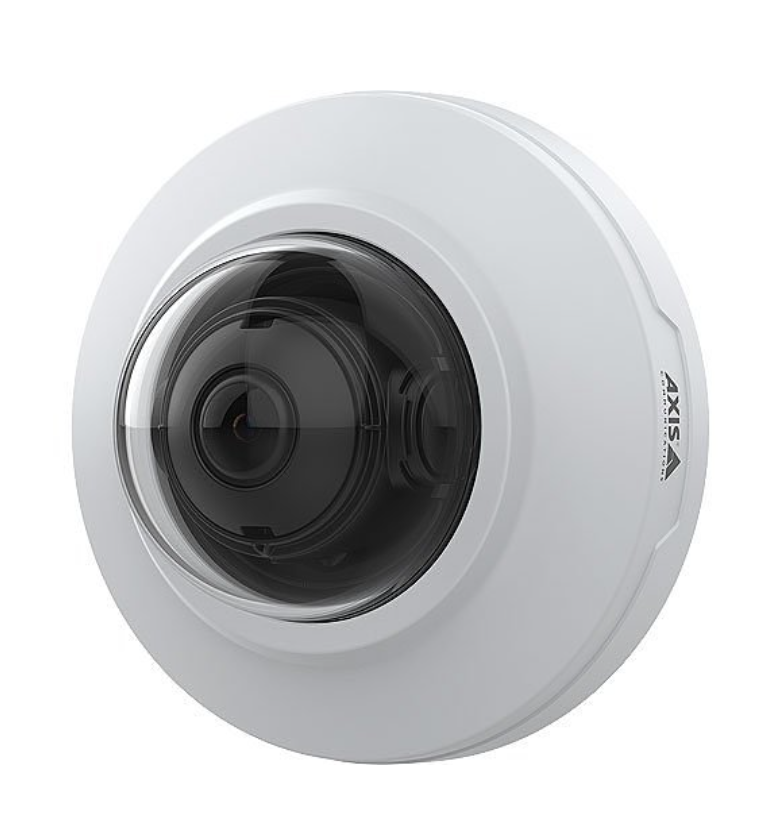

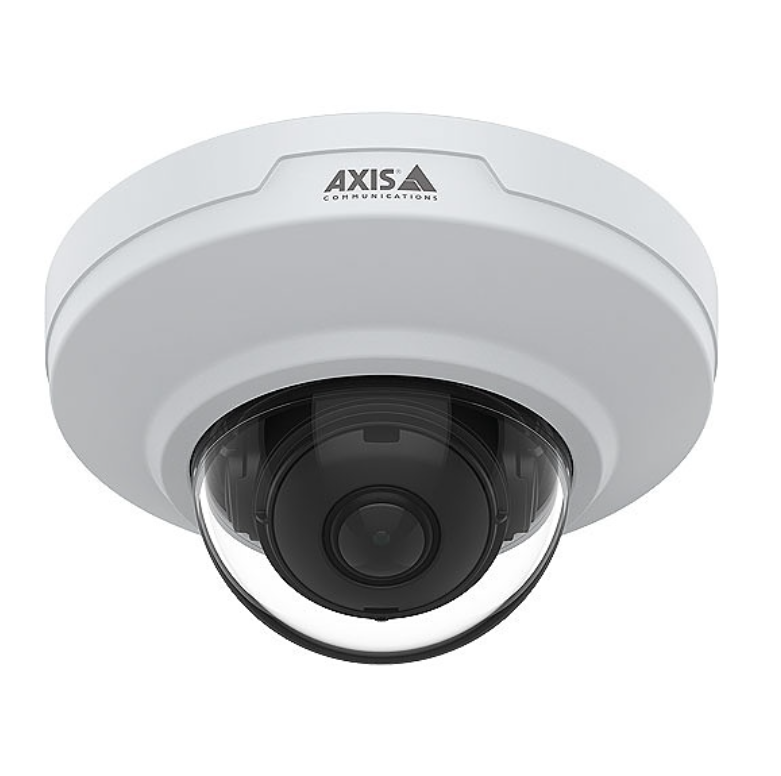

This cost-efficient, compact mini dome delivers great image quality in challenging light conditions. And, with a deep learning processing unit, you can benefit from advanced analytics based on deep learning on the edge.
Great image quality
AXIS M3086-V offers great 4 MP image quality even in challenging light conditions. Thanks to Wide Dynamic Range (WDR), it ensures clarity even when there’s both dark and light areas in the scene. And, with Lightfinder, you get sharp, color images even in low light. Furthermore, it offers a wide-angle view of 130° and comes factory-focused so there’s no manual focusing required.
Extended possibilities
AXIS M3086-V offers support for intelligent analytics based on deep learning on the edge. This means it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled and knows what to detect so you can focus on objects of interest – all tailored to your specific needs. Additionally, with support for ACAP, you can add value to your system with tailor-made applications. Furthermore, this compact dome offers the flexibility to add audio or I/O connectivity using accessories.
Compact and cost-efficient
This cost-efficient mini dome offers a wide range of mounting accessories for flexible and discreet installation. With bayonet-fitted casing, it simply twists on and off for fast, convenient installation. Compact in design, this easy-to-install, vandal-resistant camera is protected against redirection and defocusing as well as dust and dripping water. It offers Axis Zipstream with H.264/H.265 for reduced bandwidth and storage requirements. And thanks to edge storage you can record directly to an onboard memory card. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Main Features
- Great image quality in 4MP
- Compact, discreet design
- WDR and Lightfinder
- Support for analytics with deep learning
- Built-in cybersecurity features
- No built-in microphone
General Information
Specifications
General Information
ADI Part Number
Z4-02374001
Brand Name
Axis Communications
Manufacturer
Axis Communications
Manufacturer Part Number
02374-001
Product Line
M
Product Model
M3086-V
Product Name
M3086-V Dome Camera
Product Series
M30
Product Type
Network Camera
Technical Information
Connectivity Technology
Wired
Effective Camera Resolution
4MP
Field of View
Horizontal field of view: 130° Vertical field of view: 93°
HD Recording
Yes
Lens Type
Fixed
Maximum Aperture
f/2.1
Maximum Frame Rate
30 fps
Minimum Focal Length
2.4 mm
Camera
Wide Dynamic Range
Yes
Certifications
Ingress Protection Rating
IP42
TAA Compliant
Yes
Display & Graphics
Color Supported
Color
Maximum Video Resolution
2688 x 1512
Environmental Conditions
Maximum Operating Temperature
113°F (45°C)
Minimum Operating Temperature
32°F (0°C)
Operating Humidity
85%
Exposure
Longest Shutter Speed
1/5 Second
Shortest Shutter Speed
1/38500 Second
Interfaces/Ports
HDMI
Yes
Network (RJ-45)
Yes
Lens
Focal Length
2.4 mm
Lens Included
Yes
Maximum Focal Length
2.40 mm
Network & Communication
Remote Management
Yes
Others
ADI Part Number Replaces
Z4-01708001
Model Number Replaces
01708-001M3066-V
Physical Characteristics
Color
White
Color Family
White
Durability
Dust Resistant, Impact Resistant, Vandal Resistant, Water Resistant
Form Factor
Mini Dome
Height
2.2″
Product Color
White
Weight (Approximate)
5.29 oz
Product Information
Diameter
4″
Mount Type
Ceiling Mount, Wall Mount
Storage
Storage Type
Memory Card
Miscellaneous
Features
Built-in Microphone, Cross Line Detection, Day/Night, HTTPS Encryption, Human Detection, Multi-view Stream, Password Protection, Removable IR Cut-off Filter, Vehicle Detection, Wide Dynamic Range
Impact Protection Rating
IK08
Indoor/Outdoor
Indoor
